The MFM6590 and MPA6590 are C/X-band GaAs Front-End-Module MMIC and Power Amplifier.

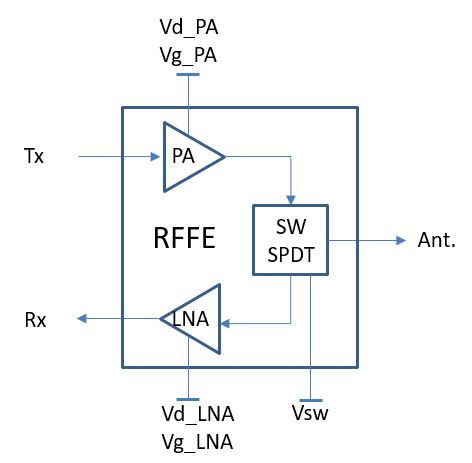

The MFM6590 front end module (FEM) is integrated with a 6.5-9 GHz power amplifier (PA), single pole two throw switch (SP2T) and low noise amplifier (LNA) into a single device.
Features
- Frequency range: 6.5-9 GHz (TX)
- Gain: 21.45dB (TX)
- Output Psat: 33dBm (TX)
- Power consumption: 4W (TX)
- Size: 4.2mm x 2.85mm
- Frequency range: 6.5-9 GHz (RX)
- Gain: 20.89dB (RX)
- Noise figure: 1.2dB (RX)
- Power consumption: 0.2W (RX)
- 100% DC and RF tested on wafer to ensure performance compliance
Applications
- Point-to-Point Radio
- Communication (5G/6G)
Availability
- Engineering samples available
