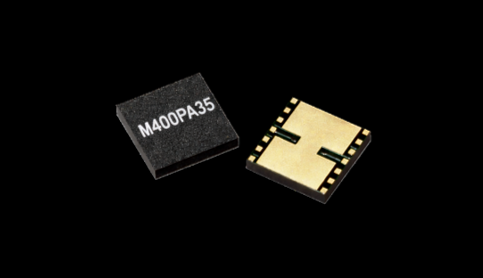

The M400PA35 is a 3.5GHz power amplifier in GaAs HBT process.
Each chip is packaged as a surface mount module with the size of 7 mm x 7 mm x 1.25 mm.
The chip operates from 5.2V supply and a 2.85V reference voltage.
Features
- 3.4-3.6GHz operation
- wide instantaneous signal bandwidth:100MHz
- High efficiency: PAE=16.36% at 33.1dBm (P1dB)
- Fully input/output matched
- High linearity: ACPR lower than -45dBc (at Pout=25dBm, 5G NR 100MHz 256QAM)
- High gain: 27dB
- Bias: 5.2V, 1.4A
- GaAs HBT production process
- 100% DC and RF tested on EVB to ensure performance compliance
- Compact (16-pin, 7mm x 7mm x 1.25mm) package(MCM)
Applications
- Small cell, picocell, and femtocell base stations
- Communications (4G/5G)
Availability
- Engineering samples available now
